| Electric Power Monitors and Transducers | |||
|---|---|---|---|
|
Heavy current engineering Internationally accepted Swiss precision for optimum energy management. The deregulation of energy markets and globally increasing environmental awareness define a high degree of responsibility for companies to treat power as a precious resource. Camille Bauer provides a wide spectrum of innovative and highly efficient power measurement and analysis products. |
Our extensive product line is manufactured in accordance with individual customer specifications and their functionality is adapted to your requirements in order to guarantee optimum results. Custom-made measuring performance has always been part of our service. |
How to Order
|
| Model/Downloads | Input/Output | Features | Product |
| Multi-Function Power Meter | |||

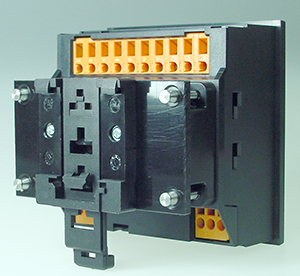

Sineax A-PlusTrue RMS Multifunction Power Meter with Power Quality AnalysisA Plus BrochureA Plus Instructions A Plus Safety Instructions DIN Rail Adapter A Plus PROFIBUS Certificate A Plus Software CB Manager Software CB Analyzer Software CB Analyzer Software Instructions CB Software Read Me First A Plus Modbus RTU A Plus Modbus/TCP A Plus PROFIBUS GSD Files |
Input: Single or 3-phase, 0-1A to 0-6 A from CT, 400 V phase-to-neutral, 690 V phase-to-phase, 50/60 Hz, 1 digital input Output: Programmable digital pulse, relay, Modbus    |
 |
 |
| Multi-Function Energy Transducers | |||
Sineax CAM Multifunction Energy TransducerCAM BrochureRogowski Sensors Brochure CAM Data Sheet CAM Instructions CAM Instructions for Graphic Display CAM Safety Instructions CAM Installation of IEC 61850 option CAM IEC 61850 Certificate CB Manager Software CB Data Analylysis Software CAM ICD Files MODBUS Basics MODBUS Instructions MODBUS/TCP Instructions |
Input: 0-1A, 0-5 A from CT or Two 4-20 mA, 57-400 V phase-to-neutral, 100-693 V phase-to-phase,
50/60 Hz, Digital I/O Output/Communications: RS-485 MODBUS, Relay, Up to 4 analog, Digital I/O, USB 2.0 programming interface
|
|
  |

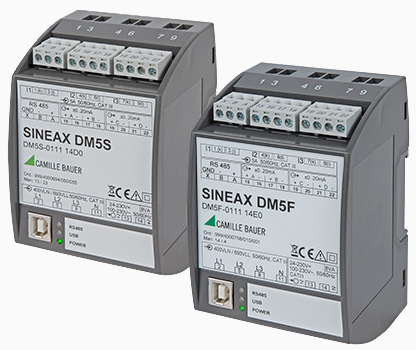

DM5S, DM5F Universal Power Transducer with MODBUS Interface and/or Analog OutputsDM5 Data SheetDM5 Instructions MODBUS Basics MODBUS Instructions CB Manager Software |
Input: 0-0.8 A to 0-1.2 A or 0-4 A to 0-6 A from CT, 57-400 V phase-to-neutral, 100-693 V phase-to-phase, 50/60 Hz
Output: Up to 4 analog outputs and/or MODBUS interface Programmable universal measurement devices for energy distribution and industrial applications. The devices can be quickly set up with CB-Manager software. Versions are availalbe for analog DC current outputs or Modbus. Measurements are done in all four quadrants and can be optimally adapted to the system to be monitored. Both the average time of the measurement and the expected maximum signal level can be configured. Commissioning is very easy and is supported by means of service functions, such as nameplate printing, connection check, measurement acquisition as well as simulation and trimming of the analog outputs. |
|
 |
