Kinax Position Transducers
  • Absolute encoders and inclinometers
  • Non-contact capacitive design ensures long life
  • Proven reliability
  • Analog or 14 bit 4-20 mA output
  • MODBUS, HART, SSI, or CANopen models
  • Factory ranged or user configurable moedels


Click on PDF links below
for product information
Applications
Ships, submarines, wind turbines, railways
Stack damper monitoring
Drainage door monitoring
Keeping tank farms safe
Keeping tank farms safe
Water level control
How to select your product
  • Open pdf datasheet for your model
  • Select model, range, units, options, accessories
  • Contact us if you need assistance
Need a quote?
Ready to order?
Other ways to order
Model/Downloads Input/Output Features Product

KINAX 3W2 Compact Angular Position Transducer

3W2 Data Sheet
3W2 Instructions
3W2 GL Certificate for Marine Version
  • Any angle, 10°-270° with up to 60% adjustability
  • Output signals from 0-1 mA to 0-20 mA, 4-20 mA
  • Non-contact, vibration resistant technology outlasts potentiometers
  • Shaft diameter: 2 mm, 6 mm, ¼"
  • Typical applications: valve position, cutting blade angle, water cannon position
kinax 3W2 angular position transducer CE logo

KINAX 2W2 Programmable Angular Position Transmitter

2W2 Data Sheet
2W2 Instructions
2W2 Software
  • Program any angle measurement from 0-5° to 350°
  • Digital output via RS-232 (software supplied)
  • 4-20 mA analog output for direct display
  • Compact rugged non-contact design virtually eliminates wear
  • Exact size replacement for analog KINAX 3W2 for easy upgrades
  • Replaces potentiometer feedback system with a single component
  • 48 mm diameter, <30 mm mounting depth for low profile installations
kinax 2W2 angular position transducer kinax 2W2 angular position transducer back side CE logo

KINAX WT-707 Factory Ranged Heavy Duty Angular Position Transducer
KINAX WT-717 Programmable Heavy Duty Angular Position Transducer

WT-707 Data Sheet
WT-707 Instructions
WT-707 CANopen Instructions
WT-707 GL Certificate for Marine Version
WT-717 Data Sheet
2W2 Software
WT-717 Instructions
  • WT-707 with factory ranged KINAX 3W2
  • WT-717 with programmable KINAX 2W2
  • Impact and vibration resistant IP67 housing
  • Dual cable glands
  • High load rated 19mm input shaft
  • Direct replacement for KINAX 7W1
  • Gear box ratios up to 1600:1 (optional)
  • GL approved marine versions available
  • Typical applications:
    • Power generation: turbine vane, damper & gate, heavy duty valve position
    • Marine and ship board applications: rudder, stabilizer, thruster position
    • Manufacturing: roller position, aluminum processing
WT-707 CE logo

KINAX WT-720 Programmable Angular Position Transducer

WT-720 Brochure
WT-720 Data Sheet
WT-720 Instructions
WT-720 IGS CAD file
WT-720 STEP CAD file
  • Field programmable 0-360° via switch and push buttons
  • 4-20 mA analog output
  • Independently programmable zero and span
  • Linear or "V" output
  • Cable gland standard, M12-4 connector optional
  • IP67 housing
Kinax WT720
CE logo

KINAX N702 Programmable Inclination Transducer

N-702 Brochure
N-702 Data Sheet
N-702 Instructions
N-702 CANopen Bus Data Sheet
N-702 CANopen Bus Instructions
N-702 CANopen Bus .eds file
N-702 SSI Bus Data Sheet
N-702 SSI Bus Instructions
N-702 Stainless Steel Data Sheet
N-702 SSI Stainless Steel Instructions
  • Field programmable 0-360° via switch and push buttons
  • 4-20 mA analog output
  • Independently programmable zero and span
  • CANopen or SSI bus interface versions
  • Oil-damped pendulum
  • M12-5 connector standard
  • IP66 housing
CE logo

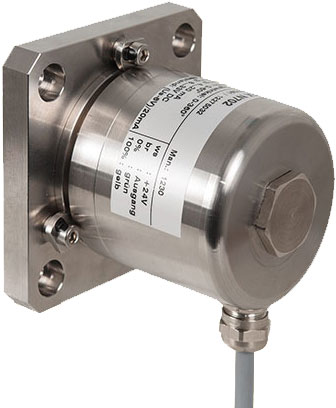

Kinax N702 Inox

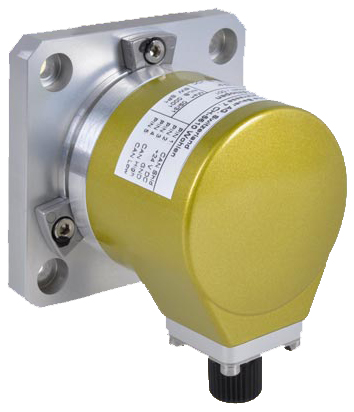

Kinax N702 Kinax N702 CAN

KINAX HW730 Programmable Hollow Shaft Angular Position Transducer

HW730 Brochure
HW730 Data Sheet
HW730 Instructions
HW730-Modbus Data Sheet
HW730-Modbus Instructions
HW730-Modbus Safety Instructions
HW730 IGS CAD file
HW730 STEP CAD file
  • Field programmable 0-360° via switch and push buttons
  • 4-20 mA analog output
  • Up to 30 mm shaft diameter
  • Independently programmable zero and span
  • Linear or "V" output
  • Cable gland standard, M12-4 connector optional
  • IP67 housing
Kinax HW730 CE logo
