Signal Conditioner Accessories

4 Digit 4-20 mA Loop Powered Display


Field Rangeable


S315  $150 *stock item*
S315-IP66  $310

Open Datasheet
Download Datasheet

Open Installation Manual
Download Installation Manual

Click to see ALL Seneca products

 Loop Powered Display
Input: 4-20 mA
Display: 4 digit red LED
  • 1/8 DIN panel mount or IP66 housing
  • Scaleable 4 digit display

CE logo
 S315
S315







Sockets


API 008   $8 *stock item*
API 008 FS   $8 *stock item*
API 011   $11 *stock item*
API 011 FS   $11 *stock item*

Open Datasheet
Download Datasheet
 API 008: 8 pin socket

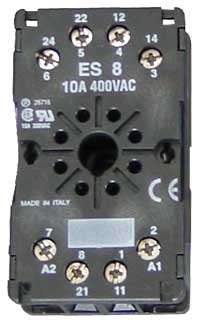

API 008 FS: 8 pin socket, finger-safe
API 011: 11 pin socket

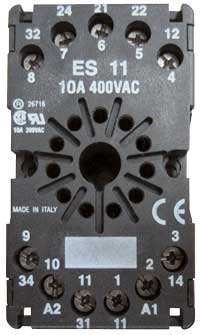

API 011 FS: 11 pin socket
  • Sockets can be DIN rail or surface mounted
  • API 008 rated to 600V
  • All others rated to 300V
  • Mount with keyway down

 API 008 API 008FS API 011 API 011FS
API 008     API 008 FS            API 011             API 011 FS

UL listed component CSA CE

Hold Down Spring


API CLP1  $5 *stock item*

Open Datasheet
Download Datasheet
 Hold-down spring for plug in modules
  • Works with any plug in module
  • For mobile applications
  • For high vibration applications

 Api hold down spring
API CLP1

Signal Conditioner Options
Power API Plug In Module Operating Power Options
Standard Isolated 115 VAC module operating power
A230 Isolated 230 VAC optional module operating power
P   $60 Isolated 60-265 VAC or 85-300 VDC optional module operating power
D   $60 Isolated 9-30 VDC optional module operating power
Power APD DIN Rail Module Operating Power Options
Standard Isolated 60-265 VAC or 85-300 VDC module operating power
D Isolated 9-30 VDC, 10-32 VAC optional module operating power
Alarm Add Option Code to End of Model Number. See Data Sheet for Availability.
A   $30 Adjustable deadbands on dual alarms
HT   $40 Latching alarm with pushbutton reset for modules with single alarm
HP   $40 Latching alarm with power-off reset for modules with single alarm
RA   $20 Reverse-acting alarms (non-failsafe)
R   $20 Reverse-acting output
L   free Low trip for single alarm modules (trip on decreasing signal)
HH   free High/High trip for dual alarm modules instead of High/Low
LL   free Low/Low trip for dual alarm modules instead of High/Low
Module Add Option Code to End of Model Number. See Data Sheet for Availability.
B   $30 Downscale burnout for thermocouple modules (upscale standard)
N   $30 No burnout for thermocouple modules (upscale standard)
DF   $40 Fast response time, available on many models, consult factory for pricing on specials
U   $20 Conformal coating on circuit boards for moisture resistance
